Bus Bar for "A" Frame Panel Mount Breakers – 3'

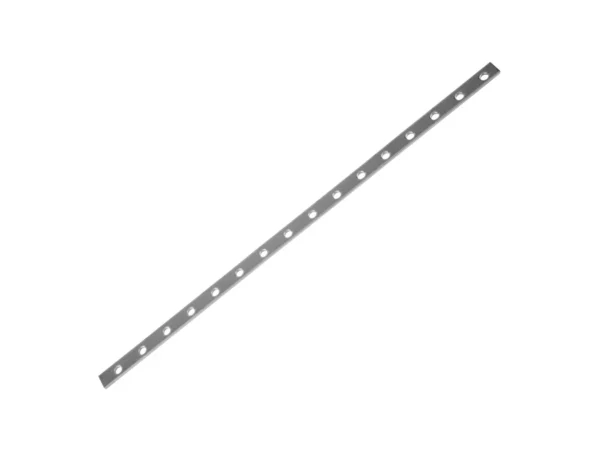

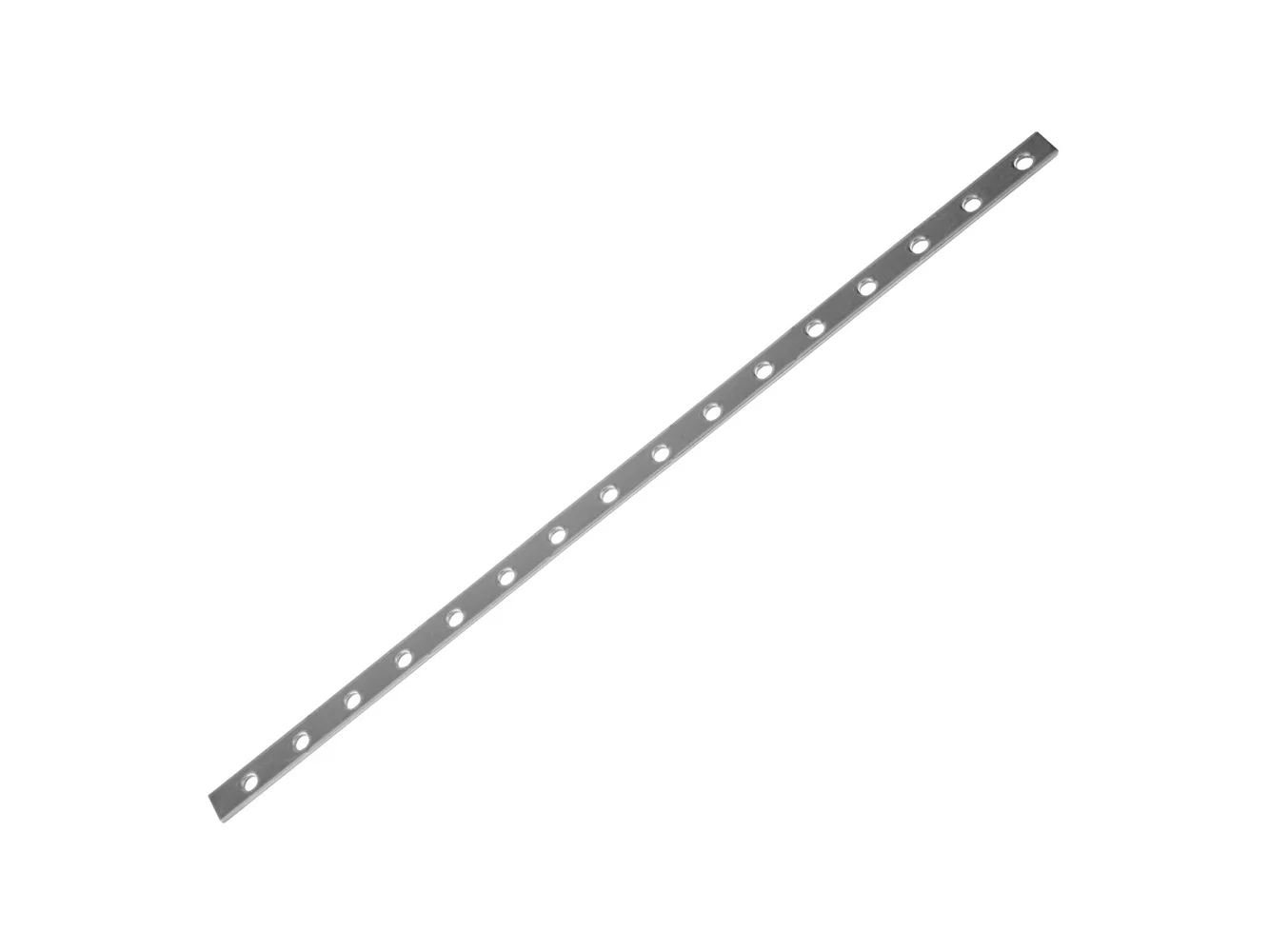

This tin-plated copper bus bar is designed for “A” frame panel mount breakers. Bus will link the line side of the breakers instead of wire jumpers. Holes are ¾” on center and are for #8 or #10 screws.
Specifications:
- Thickness: 0.062 tinned copper
- Hole Size: 3/4" on center
- Screw Style: #8 or #10
- Length: 3’
| Quick Guid | https://productimageserver.com/literature/quickGuide/105140QG.pdf |
