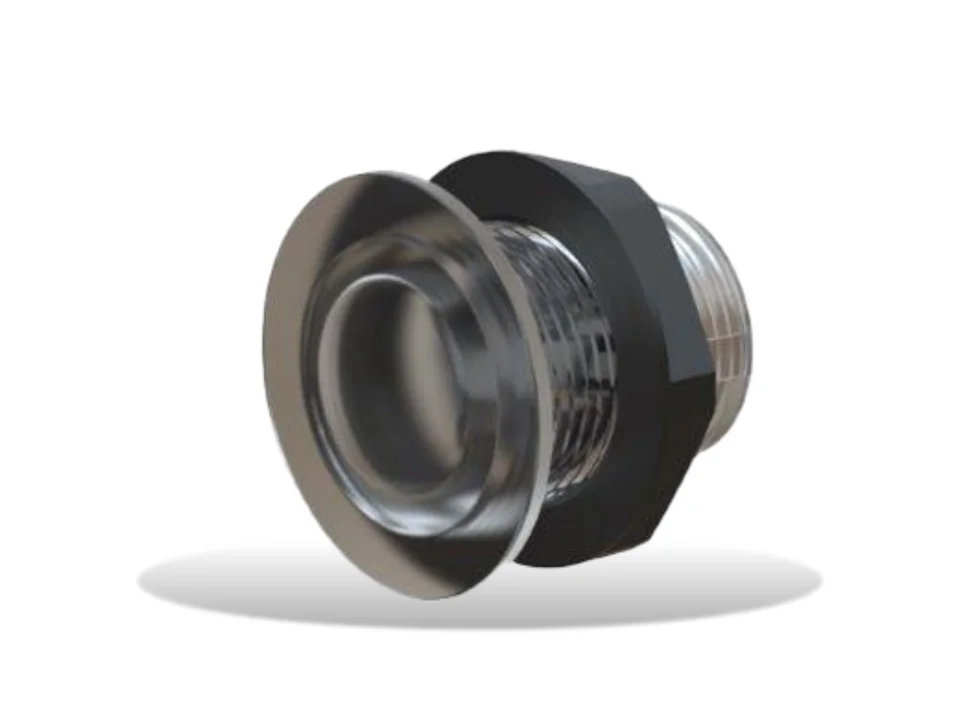

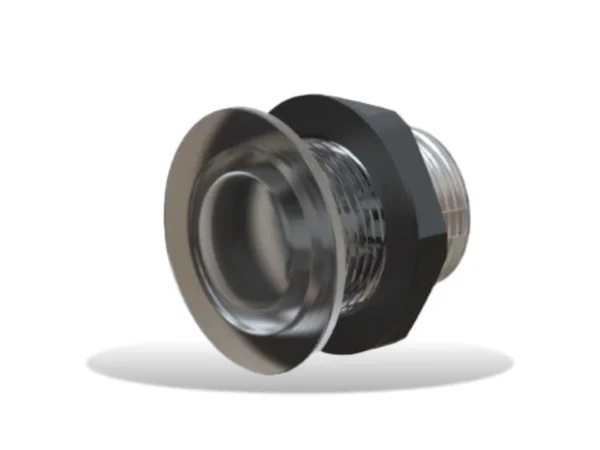

Lumishore Eclipse CL30 Blue Courtesy Light 12/24vDC
Model: CL30
ECLIPSE Courtesy Lights are great for illuminating walkways, stairwells, helm stations and other design elements of a boat.
Constructed of a durable clear acrylic body, completely water sealed and IP67 rated.
Available in single color blue and two other color options.
Measuring 33mm (1.3") in diameter, ECLIPSE Courtesy Lights are small, discreet and easy to install with a 2 wire hookup, flush mountable and fit almost anywhere onboard.
Specifications
| Color | Blue |
| LED Type | 3 x 0.5W Blue LEDs |
| Customer Control Options | On/Off Switch or ECLIPSE Command Center |
| Electrical Installation | Simple 2 Wire Installation |
| Supply Voltage Range | 12V DC Only (10 – 15V DC) |
| Max Current Draw (12V DC) | 0.1A |
| Ingress Protection | IP67 |
| Front Diamater (Bezel) | 33mm (1.3″) |
| Depth | 30.0mm (1.180") |
| Hole Diameter for fitting | 25.4mm (1.0″) |
| Mechanical Installation | Panel Mount |
